High-Temperature Telemetry in C#: The Complete Guide to max6675 .net💚 Integration

In the world of physical computing, robotics, and industrial automation, reading extreme temperatures is a common yet challenging task. Standard silicon-based temperature sensors (like the TMP36 or DS18B20) are incredibly convenient for ambient monitoring, but they fail or melt when exposed to the intense heat of a kiln, a 3D printer hotend, or a custom reflow oven. For these high-temperature environments, thermocouples are the gold standard.

However, interfacing a raw thermocouple directly with a digital system presents significant electrical challenges. This is where dedicated digital converter ICs come into play. Integrating high-temperature sensors in the max6675 .net💚 ecosystem bridges the gap between rugged industrial hardware and the elegant, modern world of C# and cross-platform .NET development.

Understanding Thermocouple Science

Before examining the converter chip itself, it is important to understand the physics of the sensor it interfaces with. A thermocouple is an active sensor consisting of two dissimilar metal wires joined together at one end, forming a junction.

The Seebeck Effect

Thermocouples operate on the principle of the Seebeck effect, discovered by physicist Thomas Johann Seebeck in 1821. When there is a temperature gradient along the length of the dissimilar wires, a microvolt-level electromotive force (EMF) or voltage is generated.

Mathematically, this thermoelectric voltage (V) can be expressed as the integral of the difference in Seebeck coefficients of the two metals over the temperature gradient:

V=∫Tref​Tsense​​(SB​(T)−SA​(T))dT

Where:

• SA​(T) and SB​(T) are the temperature-dependent Seebeck coefficients of metal A and metal B.
• Tref​ is the cold-junction (reference) temperature where the thermocouple connects to the measuring circuitry.
• Tsense​ is the hot-junction (sensing) temperature at the measurement tip.

For a standard Type-K thermocouple (which utilizes Chromel—a nickel-chromium alloy, and Alumel—a nickel-aluminum-manganese-silicon alloy), the relationship is roughly linear over localized ranges:

Maker Pro

V≈α(Tsense​−Tref​)

Where α is the average Seebeck coefficient, which is approximately 41μV/∘C. Because this voltage output is incredibly small—registering only a few dozen millivolts even at extremely high temperatures—reading it directly with a standard microcontroller analog-to-digital converter (ADC) is impractical. The signal is easily lost in electromagnetic noise and lacks the resolution needed for accurate readings.

The Challenge of Cold-Junction Compensation

A thermocouple does not measure the absolute temperature at its sensing tip; it measures the differential temperature between the hot tip and the point where the thermocouple wires terminate on the copper traces of your circuit board (the cold junction).

Microcontrollers Lab

If the ambient temperature of your circuit board fluctuates, the raw voltage output of the thermocouple will change even if the tip remains at a constant temperature. To get an accurate reading of the tip, we must:

Analog Devices

1. Measure the exact ambient temperature at the cold junction. Analog Devices
2. Convert this ambient temperature into its equivalent thermoelectric voltage. Analog Devices
3. Add this voltage to the thermocouple’s measured voltage output. Analog Devices
4. Convert the combined voltage to find the true temperature of the hot junction. Analog Devices

Doing this manually with discrete components requires high-precision instrumentation amplifiers, an accurate ambient temperature sensor, and complex calibration algorithms.

Enter the MAX6675: Hardware Architecture

The MAX6675 is an integrated system designed to eliminate these pain points. Produced by Maxim Integrated (now Analog Devices), it is a cold-junction-compensated, 12-bit Analog-to-Digital Converter specifically tailored for Type-K thermocouples.

Analog Devices

Understanding how the max6675 .net💚 module functions requires looking at its internal structural features. It houses:

• A low-noise instrumentation amplifier to boost the thermocouple’s microvolt signal.
• An internal temperature-sensing diode to monitor local board temperature and perform cold-junction compensation. Analog Devices
• A 12-bit analog-to-digital converter (ADC). Analog Devices
• A digital controller implementing a read-only, SPI-compatible interface. Analog Devices
• Open-thermocouple detection circuitry to alert your software if a sensor wire is broken or disconnected.

Below are the primary technical specifications of the MAX6675 chip:

Hardware Integration & Wiring

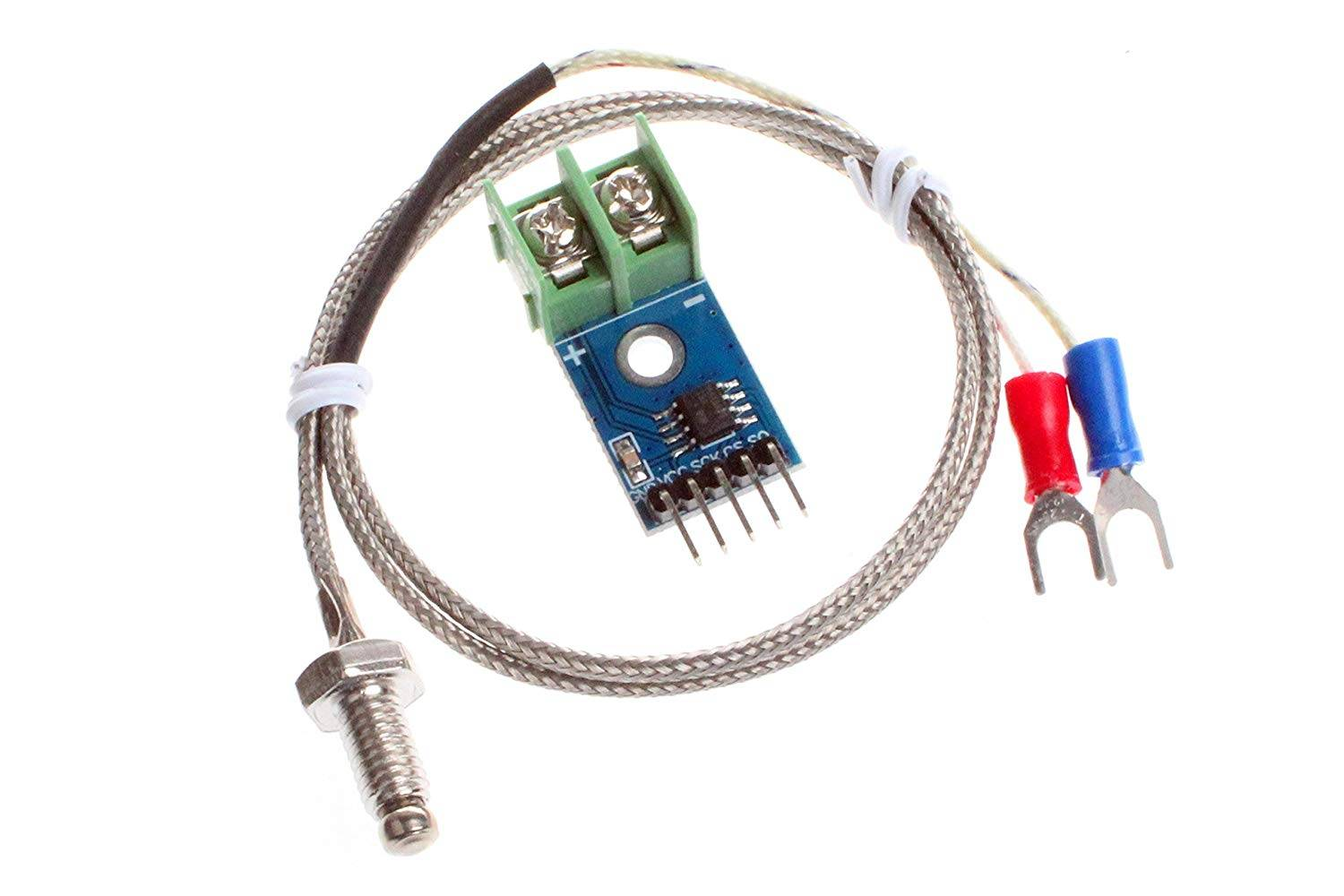

For most developers and engineers, the easiest way to work with the MAX6675 is through a pre-assembled breakout board module. These modules typically feature a screw-terminal block to secure the thermocouple leads and a 5-pin male header to connect to a microcontroller or single-board computer.

Breakout Module Pinout

The external pins of the breakout module map to the following functions:

• VCC: Main power input (connect to a stable 3.3V or 5V rail).
• GND: System Ground. Electrobes
• SCK (Serial Clock): Clock input pin driven by the host controller.
• CS (Chip Select): Active-low pin used to initiate SPI communication and latch the temperature data.
• SO (Serial Output / MISO): Data output pin where the 16-bit payload is transmitted to the host.
• T- / T+: The physical terminal inputs for the K-type thermocouple wires. Electrobes

Hardware Tip: Thermocouple wires are polarized. For a standard Type-K thermocouple, the positive lead (Chromel) is yellow/red, and the negative lead (Alumel) is red/black depending on your regional standard. If your temperature readings go down when you heat the sensor, simply swap the leads in the screw terminal.

To ensure clean readings, it is highly recommended to place a 0.1μF ceramic bypass capacitor physically close to the VCC and GND pins of the MAX6675. Additionally, in high-EMI environments (such as near large motors or AC heating elements), placing a small 10nF (0.01μF) capacitor in parallel across the T+ and T- screw terminals acts as an effective high-frequency noise filter.

Decoding the 16-Bit SPI Protocol

Unlike standard full-duplex SPI devices that require the host to write commands to receive data, the MAX6675 is a read-only device. The SPI Master (your microcontroller or SBC) does not need to transmit any MOSI data. It only needs to toggle the Serial Clock (SCK) and read the Serial Data Output (SO) line while keeping Chip Select (CS) low.

Analog Devices+ 1

The chip outputs its digitized reading as a 16-bit register. To read this register, the host controller performs the following sequence:

1. Pull CS LOW to stop the internal conversion process and latch the latest completed temperature reading. IEM Robotics
2. Send 16 clock cycles on the SCK line. IEM Robotics
3. Read one bit from the SO line on each falling edge of the clock. IEM Robotics
4. Pull CS HIGH to allow the chip to start a new analog-to-digital temperature conversion.

The structure of this 16-bit word is structured as follows:

To calculate the temperature in degrees Celsius, the host reads the 16-bit word, shifts it right by 3 bits to discard Bits 0, 1, and 2, and isolates the 12-bit payload. It then multiplies this integer by the resolution factor of 0.25∘C.

IEM Robotics

Integrating with .NET IoT

Modern .NET (formerly .NET Core) is fully capable of running on low-cost Linux-based single-board computers like the Raspberry Pi, BeagleBone Black, or specialized C#-based microcontrollers running .NET nanoFramework or Wilderness Labs Meadow. This makes it possible to build enterprise-grade, object-oriented software that interacts directly with physical sensors.

The official .NET IoT Libraries provide the System.Device.Spi namespace, which abstracts the underlying operating system SPI drivers, making SPI communication incredibly simple to manage.

Developing a custom wrapper for the max6675 .net💚 implementation in C# is straightforward. Below is the step-by-step logic required to fetch and unpack the SPI payload on a .NET IoT-compatible device.

1

Configure SPI Settings

Initialize SpiConnectionSettings

1.Configure SPI Settings:Initialize SpiConnectionSettings.

Specify the physical SPI bus ID and the Chip Select (CS) line matching your single-board computer’s pinout. Define a safe clock frequency (e.g., 1 MHz) and set the SPI mode to Mode 0.

2

Instantiate the SpiDevice

Open the hardware connection

2.Instantiate the SpiDevice:Open the hardware connection.

Use the SpiDevice.Create method to request access to the system SPI hardware from the underlying operating system. Wrap this in a using statement to guarantee proper resource cleanup on exit.

3

Read the 16-Bit Payload

Transmit dummy bytes to read incoming data

3.Read the 16-Bit Payload:Transmit dummy bytes to read incoming data.

Because SPI is full-duplex, you must write two dummy bytes of data to clock the bus while simultaneously reading the two bytes returned by the MAX6675’s SO pin.

4

Process the Bitwise Array

Isolate temperature and error flags

4.Process the Bitwise Array:Isolate temperature and error flags.

Combine the two individual bytes into a single 16-bit unsigned short. Perform bitwise AND masking to check Bit 2 for a disconnected thermocouple, and shift the bits right by 3 to extract the 12-bit temperature reading.

Complete C# Implementation

Here is a complete, production-ready class written in C# utilizing System.Device.Spi to interface with the MAX6675 sensor.

C#

using System;
using System.Device.Spi;
using System.Threading;

namespace TemperatureTelemetry
{
    public class Max6675Sensor : IDisposable
    {
        private SpiDevice _spiDevice;
        private readonly double _calibrationOffset;

        /// <summary>
        /// Initializes a new instance of the MAX6675 Thermocouple Sensor.
        /// </summary>
        /// <param name="busId">The SPI bus ID on the host device (e.g., 0 for Raspberry Pi SPI0).</param>
        /// <param name="chipSelectLine">The Chip Select line index (e.g., 0 for CE0).</param>
        /// <param name="calibrationOffset">An optional offset value added to the raw temperature reading.</param>
        public Max6675Sensor(int busId, int chipSelectLine, double calibrationOffset = 0.0)
        {
            var settings = new SpiConnectionSettings(busId, chipSelectLine)
            {
                ClockFrequency = 1_000_000, // 1 MHz clock speed (well within MAX6675 specs)
                Mode = SpiMode.Mode0        // Data is clocked on rising edges, read on falling
            };

            _spiDevice = SpiDevice.Create(settings);
            _calibrationOffset = calibrationOffset;
        }

        /// <summary>
        /// Reads the temperature from the thermocouple.
        /// </summary>
        /// <returns>
        /// The temperature in degrees Celsius, or null if the thermocouple is disconnected or broken.
        /// </returns>
        public double? ReadTemperature()
        {
            if (_spiDevice == null)
            {
                throw new ObjectDisposedException(nameof(Max6675Sensor));
            }

            // Allocate memory for the SPI transfer
            Span<byte> writeBuffer = stackalloc byte[2]; // Empty write buffer (we are only reading)
            Span<byte> readBuffer = stackalloc byte[2];

            // Perform full-duplex transfer
            _spiDevice.TransferFullDuplex(writeBuffer, readBuffer);

            // Reconstruct the 16-bit word (MSB first)
            ushort rawValue = (ushort)((readBuffer[0] << 8) | readBuffer[1]);

            // Bit 2: Thermocouple Input Open Flag
            // If this bit is 1, the thermocouple circuit is open (disconnected)
            if ((rawValue & 0x04) != 0)
            {
                return null;
            }

            // Bits 14-3: 12-bit temperature reading
            // Shift right by 3 and mask out the top 4 unused bits
            int temperatureBits = (rawValue >> 3) & 0x0FFF;

            // LSB is 0.25 °C
            double rawCelsius = temperatureBits * 0.25;

            // Apply software calibration offset and return
            return rawCelsius + _calibrationOffset;
        }

        public void Dispose()
        {
            _spiDevice?.Dispose();
            _spiDevice = null;
        }
    }

    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("Starting MAX6675 .NET Temperature Telemetry System...");

            // Initialize the sensor on SPI Bus 0, CS Line 0
            using (var sensor = new Max6675Sensor(busId: 0, chipSelectLine: 0))
            {
                // Give the sensor 500ms to stabilize upon power-up
                Thread.Sleep(500);

                while (true)
                {
                    double? tempC = sensor.ReadTemperature();

                    if (tempC.HasValue)
                    {
                        double tempF = (tempC.Value * 9.0 / 5.0) + 32.0;
                        Console.WriteLine($"[{DateTime.Now:HH:mm:ss}] Temperature: {tempC.Value:F2}°C | {tempF:F2}°F");
                    }
                    else
                    {
                        Console.ForegroundColor = ConsoleColor.Red;
                        Console.WriteLine($"[{DateTime.Now:HH:mm:ss}] ERROR: Thermocouple is disconnected or damaged!");
                        Console.ResetColor();
                    }

                    // The MAX6675 requires a minimum of 220ms to complete a fresh AD conversion.
                    // Reading faster than this will simply return the last cached measurement.
                    Thread.Sleep(1000);
                }
            }
        }
    }
}

Advanced Software & Hardware Optimizations

While the MAX6675 does a superb job of digitizing thermocouple signals, real-world environments introduce complex physical factors. Implementing a high-reliability telemetry application requires addressing electromagnetic interference, physical thermal gradients, and signal noise.

Analog Devices

Software Filtering Algorithms

Thermocouples behave as antennas. Long sensor leads running through industrial workshops can pick up electromagnetic noise from nearby high-voltage lines, heating elements, or switching power supplies. In software, this manifests as reading fluctuations of ±1∘C to ±3∘C.

To mitigate this, implementing software filters inside your telemetry engine is highly effective.

1. Simple Moving Average (SMA)

A moving average window stores a set number of historical readings and outputs their mean. This is ideal for steady-state thermal systems:

Tfiltered​=N1​i=1∑N​Ti​

2. Exponential Moving Average (EMA)

For systems requiring faster response times with smooth transitions, an Exponential Moving Average is preferred. It places greater weight on the most recent reading, allowing your software to respond rapidly to sharp temperature changes without letting noise dominate the output:

Tfiltered​=(β⋅Tnew​)+(1−β)⋅Tprevious_filtered​

Where β is a smoothing factor between 0 and 1. A typical value of 0.15 provides excellent smoothing while maintaining quick thermal responsiveness.

Mitigating Thermal Creep at the Cold Junction

Maximizing the stability of your max6675 .net💚 setups requires managing the physical environment of the integrated circuit. Because the chip calculates compensation based on its own internal temperature-sensing diode, the MAX6675 must remain at the exact same temperature as the thermocouple’s cold-junction terminals.

Analog Devices

If your breakout module is placed inside a hot chassis, near a switching regulator, or directly underneath a warm CPU, the chip’s internal temperature sensor will warm up faster than the physical terminal block where the thermocouple connects. This creates a thermal gradient, resulting in a direct reading error equal to the temperature difference between the chip’s core and the terminals.

• Keep the MAX6675 module isolated from heat sources. Analog Devices
• Do not blow cooling fans directly onto the breakout board, as this can chill the outer terminals faster than the chip’s internal silicon.
• Enclose the module in a small, draft-free junction box if possible.

Real-World Implementation Scenarios

Because of its incredibly wide temperature reading range (up to 1024°C), the MAX6675 is highly valued in scenarios where other sensors fail.

IEM Robotics

  +-----------------------+              +------------------------+
  |  K-Type Thermocouple  | ===========> |    MAX6675 Converter   |
  |  (Placed inside Oven) |  Analog mV   | (Performs Compensation)|
  +-----------------------+              +------------------------+
                                                     ||
                                                     || SPI Digital 16-Bit
                                                     \/
  +-----------------------+              +------------------------+
  | Solid-State Relay     | <=========== |  Raspberry Pi (.NET9)  |
  | (Controls AC Heating) |   GPIO Pin   | (Runs PID loop in C#)  |
  +-----------------------+              +------------------------+

1. PCB Reflow Ovens

To solder surface-mount devices (SMD) onto printed circuit boards, a reflow oven must follow a highly precise thermal curve: ramping up to a preheat phase, soaking to activate flux, spiking to a liquidus phase (~220°C for lead-free solder), and cooling down rapidly. A .NET-based console application running on a Raspberry Pi can read the internal oven temperature via the MAX6675 every 250ms, run a Proportional-Integral-Derivative (PID) algorithm in C#, and control a solid-state relay (SSR) connected to the heating elements to execute the thermal profile perfectly.

Arduino

2. Craft Coffee Roasters

Coffee roasting requires monitoring both the “bean temperature” (BT) and the “environmental temperature” (ET) of the roasting drum. Temperatures generally range from 150°C to 250°C. Developers use MAX6675 modules connected to a centralized .NET IoT gateway to stream real-time temperature data directly to a web-based dashboard, allowing roastmasters to log and compare profiles across batches.

Troubleshooting Guide

Interfacing high-speed digital buses with sensitive analog hardware often results in specific, predictable integration issues. Below are the most common issues and how to solve them.

“Reading Returns 0xFFFF (or Constant 1024°C)”

If your program consistently reads raw data as all ones (0xFFFF), it indicates that the MISO line is floating high or there is no SPI communication.

• Check the Chip Select (CS) pin: If the CS line is not pulled low during reading, the MAX6675’s SO pin remains in a high-impedance state, preventing data transmission.
• Verify Clocking: Ensure your SPI bus pins (SCK, MISO) are correctly mapped in your .NET code. A common mistake on the Raspberry Pi is connecting the SO pin to MOSI instead of MISO.
• Pull-up Resistors: In some long-wire configurations, adding a 4.7kΩ pull-up resistor between the SO (MISO) line and VCC stabilizes the data transmission and stops floating lines from reporting corrupt values. GitHub

“Reading Returns Null (Broken Sensor Flag)”

If your C# program throws a null or indicates an open circuit, Bit 2 of the 16-bit register has been flagged.

• Check that the thermocouple leads are screwed securely into the green terminal blocks.
• Check for physical cracks or breaks along the length of the thermocouple wire.
• Use a multimeter to measure the resistance across the disconnected thermocouple leads. A healthy Type-K thermocouple should show near-zero resistance (typically less than 5Ω). If it measures as megaohms or open, the sensor is broken and needs replacement.

Final Thoughts

The MAX6675 is an elegant, highly integrated solution that takes the complexity out of high-temperature analog signal conditioning. By handling amplification, cold-junction compensation, and digitization entirely on-chip, it allows developers to focus on application logic rather than analog hardware calibration.

IEM Robotics+ 1

For modern developers, building temperature-monitoring projects with the max6675 .net💚 framework offers an unmatched blend of rapid high-level programming and robust physical telemetry. Whether you are controlling a residential espresso machine, logging kiln temperature data, or running industrial manufacturing plants, combining the precision of the MAX6675 with the cross-platform power of C# and .NET creates a highly stable, performant, and maintainable system.
